Cleans tube, pipe and hose assemblies before they go on: a pneumatic launcher fires a foam projectile through the bore and drives out the cutting swarf, scale and loose dirt left by fabrication or a strip-down.
State the size range of your lines, the connection type, and whether the material is metal or rubber hose — quotes within 2 working hours.
| Line range | 1/4″–2″ (6–50 mm) — metric nozzles to 60 mm |
|---|---|
| Operating pressure | 85–120 psi (6–8 bar) |
| Compressor spec | 87–145 psi (6–10 bar) |
| Air volume | 250–400 l/min (66–106 GPM) |
| Projectile sizing | ±15% larger than the internal diameter |
| Components | Launcher · nozzles · foam projectiles |
The nozzle and projectile selection tables — hose, tube and pipe — are on this page, as printed in the catalogue.
| Series | Code | For |
|---|---|---|
| Standard | SC-S | No end fittings |
| Coupling | SC-C | Fitted assemblies |
| Abrasive | SC-A | Light rust (metal) |
| Grinding | SC-G | Heavy rust (metal) |

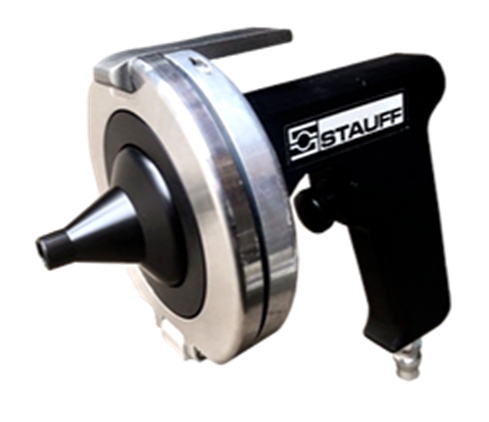

A trigger gun with a quick-release coupler to your air supply.
Size-specific — seals against the tube or hose end, with or without fittings.
Single-use, 15% oversize. Compresses against the wall and wipes the bore all the way through.
What it is for: new fabrication — getting cutting swarf and scale out · hose assemblies — clearing a crimped assembly before it goes on · maintenance — clearing lines during a strip-down · light rust and scale in metal tube and pipe.
| What it does NOT do | Why |
|---|---|
| Not a substitute for flushing | It removes loose contamination. Suspended or bonded material still needs a flush. |
| Not for a blocked line | A projectile needs a path — a solid blockage stops it. |
| Not a pressure test | Cleaning a line says nothing about whether it will hold. |
| Series | Part code | Application | Characteristics |
|---|---|---|---|
| Standard | SC-S-07 … SC-S-60 | Hose/tube without end fittings | Plain foam, uniform through its length |
| Coupling | SC-C-07 … SC-C-60 | Hose assemblies with fittings | Shaped to pass an end fitting |
| Abrasive | SC-A-07 … SC-A-60 | Light rust/scale on metal | Abrasive pad fixed to one end |
| Grinding | SC-G-07 … SC-G-60 | Heavy rust and buildup | Coated in carborundum for its full length |
Projectiles are single-use consumables. Foam that has been compressed the length of a tube is not the size it started — and they are the cheapest part of the whole system. Use a standard-series projectile on a fitted assembly and it very likely will stop partway.
| Hose ID | Metric OD | Universal nozzle | No fittings | With fittings |
|---|---|---|---|---|
| 1/4″ | 6 mm | UV06 | TCS07–TCS10 | TCC07–TCC09 |
| 5/16″ | 8 mm | UV08 | TCS10–TCS12 | TCC10–TCC12 |
| 3/8″ | 10 mm | UV10 | TCS12–TCS14 | TCC12–TCC14 |
| 1/2″ | 13 mm | UV13 | TCS16–TCS18 | TCC14–TCC16 |
| 5/8″ | 16 mm | UV16 | TCS18–TCS22 | TCC18–TCC20 |
| 3/4″ | 19 mm | UV19 | TCS22–TCS24 | TCC20–TCC22 |
| 1″ | 25 mm | UV25 | TCS30–TCS33 | TCC30–TCC33 |
| 1¼″ | 32 mm | UV32 | TCS36–TCS40 | TCC36–TCC40 |
| 1½″ | 38 mm | UV38 | TCS45–TCS50 | TCC40–TCC50 |
| 2″ | 50 mm | UV50 | TCS55–TCS60 | TCC55–TCC60 |
| Nominal bore | Inch OD | Metric OD | Universal nozzle | SCH40 | SCH80 |
|---|---|---|---|---|---|
| 1/4″ | 0.540″ | 13.7 mm | UV06 | TCS12–TCS14 | TCS09–TCS10 |
| 3/8″ | 0.675″ | 17.1 mm | UV10 | TCS14–TCS16 | TCS12–TCS14 |
| 1/2″ | 0.840″ | 21.3 mm | UV13 | TCS18–TCS22 | TCS16–TCS20 |
| 3/4″ | 1.050″ | 26.7 mm | UV19 | TCS26–TCS30 | TCS22–TCS26 |
| 1″ | 1.315″ | 33.4 mm | UV25 | TCS33–TCS36 | TCS24–TCS30 |
| 1¼″ | 1.660″ | 42.2 mm | UV32 | TCS40–TCS45 | TCS36–TCS40 |
| 1½″ | 1.900″ | 48.3 mm | UV38 | TCS50 | TCS45–TCS50 |
| 2″ | 2.375″ | 60.3 mm | UV50 | TCS60 | TCS60 |
Note the SCH80 column: a thicker wall means a smaller bore, so the projectile is smaller too at the same nominal size. State the pipe schedule, not just the nominal bore.
| Part number | Description | Sizes covered |
|---|---|---|
| SC-10UV-K | Launcher + ten universal nozzles | 6, 8, 10, 13, 16, 19, 25, 32, 38, 50 mm |
| SC-LK1 | Launcher only | — |
| SC-10UV-S | Universal nozzle set | 6, 8, 10, 13, 16, 19, 25, 32, 38, 50 mm |
| SC-18MT-S | Metric tube nozzle set | 6, 8, 10, 12, 14, 15, 16, 18, 20, 22, 25, 28, 30, 35, 38, 42, 50, 60 mm |
| SC-10J-S | JIC nozzle set | 6, 8, 10, 13, 16, 19, 25, 32, 38, 50 mm |
| SC-7B-S | NPT nozzle set | 1/4″, 3/8″, 1/2″, 5/8″, 3/4″, 1″, 1¼″ |

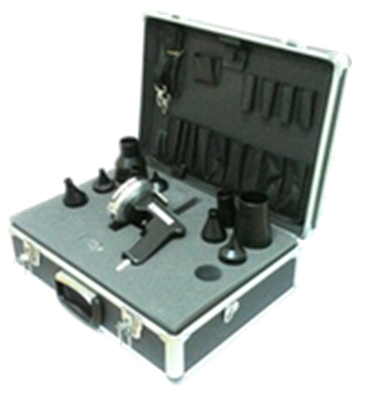

Start with the SC-10UV-K — a launcher plus ten universal nozzles covering the common bores. If your work is consistently one connection type, add the matching set: metric (18 sizes, to 60 mm), JIC or NPT.
Full part numbers per size are in the catalogue, as printed; stock and price are not — send the list and we confirm both.
Roughly 15% larger in diameter than the inside diameter of the line. That over-size is the whole point: it compresses against the wall and wipes the bore as it travels.
It works effectively between 85 psi (6 bar) and 120 psi (8 bar), with a compressor specification of 87–145 psi (6–10 bar) and 250–400 l/min (66–106 GPM).
Standard (S) for no end fittings. Coupling (C) for hose assemblies with fittings. Abrasive (A) for light rust/scale — abrasive pad on one end. Grinding (G) for heavier rust — coated carborundum full length.
No. The abrasive and grinding series are for metal tube and pipe. An abrasive pad or carborundum inside rubber hose will damage the liner.
1/4″ to 2″, or 6–50 mm. The universal nozzles cover that range; the metric tube set extends it to 60 mm.
Yes — that is exactly what the coupling series (C) is for. Use a standard-series projectile on a fitted assembly and it very likely will stop partway.
Treat them as single-use consumables. Foam compressed the length of a tube is not the size it started. They are the cheapest part of the system.
Start with the SC-10UV-K: a launcher plus ten universal nozzles covering the common bores. If your work is consistently one connection type, add the matching set — metric, JIC or NPT.
No. The projectile needs a path through the bore — a solid blockage stops it. This system is for removing loose contamination from an otherwise clear line.
Usually yes. Mechanical cleaning removes loose material before assembly; flushing deals with suspended or bonded material and reaches the corners a projectile does not.
Launchers, nozzle sets and projectiles are held in our regional warehouses in Singapore and Malaysia, out within 24 hours of your PO; quotes within 2 working hours.
