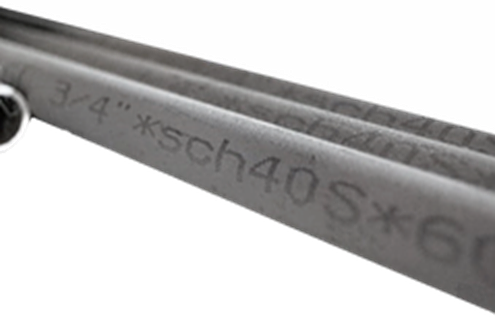

Seamless pipe in dual grade TP316/316L — the marine grade with 2.0–3.0% molybdenum — in 6 metre lengths, annealed and pickled. For process piping, chemical, pharmaceutical and marine work.
State the NB & schedule (e.g. 2″NB SCH40), grade, end connection and total metres — quotes back within 2 working hours.

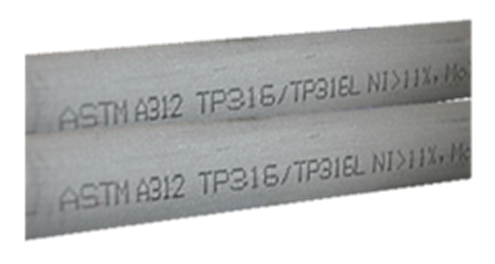

| Standard | ASTM A312 · ASME SA312 |
|---|---|
| Grade | TP316 / TP316L dual grade — the marine grade |
| Range | 1/8″ – 4″ nominal bore |
| Length | 6 metres · seamless · annealed and pickled |
| Ends | Plain · threaded (NPT) · 30° bevel |
| Certificate | EN 10204 3.1 per heat |
Nominal sizes and schedule wall thickness tables are in the catalogue below, as printed.
| At a glance | Pipe (this page) | Tube |
|---|---|---|
| Sized on | NB × schedule | OD × wall |
| Standard | A312 | A269 / A213 |
| Joined by | Thread · weld · flange | Compression fittings |
Chemical composition limits % by weight · as printed
| Element | SS316 | SS316L |
|---|---|---|
| Carbon (C) | 0.08 max | 0.035 max |
| Manganese (Mn) | 2.00 max | 2.00 max |
| Silicon (Si) | 1.00 max | 1.00 max |
| Phosphorus (P) | 0.045 max | 0.045 max |
| Sulphur (S) | 0.030 max | 0.030 max |
| Chromium (Cr) | 16.0 – 18.0 | 16.0 – 18.0 |
| Nickel (Ni) | 11.0 – 14.0 | 10.0 – 14.0 |
| Molybdenum (Mo) | 2.0 – 3.0 | 2.0 – 3.0 |
Physical properties of both grades: density 7.99 g/cm³ · thermal conductivity 16.2 W/m·K (100 °C) · electrical resistivity 74 µΩ·cm (20 °C) · melting range 1,371–1,399 °C. Dual grade means one length meets the composition limits of both 316 and 316L at once — the strength of standard 316 plus the weld-zone corrosion resistance of the low-carbon grade.
Manufacturing tolerances ASTM A312
| Nominal bore | OD tolerance | Wall tolerance |
|---|---|---|
| 1/8″ – 1 1/2″ | +0.40 / −0.80 mm | ±12.5% |
| 2″ – 4″ | ±0.80 mm | ±12.5% |
| 5″ – 8″ | +1.60 / −0.80 mm | ±12.5% |
Base working-pressure calculations on the minimum wall, not the nominal — the ±12.5% wall tolerance means the actual wall can be thinner than the schedule figure.
Finished as the mill supplies it — generally used on smaller diameters.
A tapered thread such as NPT — the taper is what does the sealing, reducing the possibility of leakage.
A 30° bevel on the pipe end — the standard preparation for butt welding.
Corrosion resistance, durability and high-temperature strength together.
Meets stringent cleanliness standards — the annealed and pickled surface is the reason; surgical tools and sanitary pipe too.
Durability in harsh service and resistance to seawater corrosion — shipbuilding and coastal structures.
High pressure and high temperature service; also domestic water systems, plumbing and factory fabrication.
Dimensions and part numbers are in the catalogues, as printed; stock and price are not — send the list and we confirm both.
The specification for seamless, welded and heavily cold worked austenitic stainless pipe — for high-temperature and general corrosive service.
Pipe is specified by nominal bore and schedule; tube by OD and wall thickness. The nominal size of a pipe is a label, not a measurement. A312 = the pipe standard; A269 = the tube standard.
Pipe that meets the composition limits of both grades at once, so one length satisfies either callout. Carbon decides: 0.08% max for 316, 0.035% for 316L — the L is for low carbon, the right pick when welding.
It depends on the nominal bore — schedule is a wall thickness series, not a single number. SCH40 is the most common; SCH10, 80, 160 and XXS are the other regular options. Full tables are in the catalogue.
SS316 resists corrosion better — markedly so in chloride-rich environments. The reason is molybdenum (2.0–3.0% in 316; none in 304).
Not in normal service — chromium forms a passive oxide layer that reforms itself when damaged.
Yes — it does not leach harmful substances, resists corrosion and is easy to maintain.
kg/m = 0.02507 × wall × (OD − wall), both in mm, density 7.98 g/cm³.
Yes — standard supply is 6 metre mill lengths; cut lengths are quoted on request.
Yes — 1/8″ to 4″ in our regional warehouses in Singapore and Malaysia; out within 24 hours of your PO, quotes within 2 working hours.
